JARABO High elastic heavy 5"420kg Plate Swivel TPU Caster J77515-H735-86A/M12X80
- Product Category：77 Series
- Item NO.：J77515-H735-86A/M12X80
- Wheel Diameter：5"(125mm)
- Mounting Type：Plate_Swivel
- Tread Material：TPU
- Dynamic Load：420kg
- Mounting Height ：170mm
- Frame Material：Hot-Rolled Plate
- Plate Thickness：5mm
- Brack Thickness：4mm
- Surface Treatment：Electrophoresis
- Bracket Width：61mm
- Wheel width：50mm

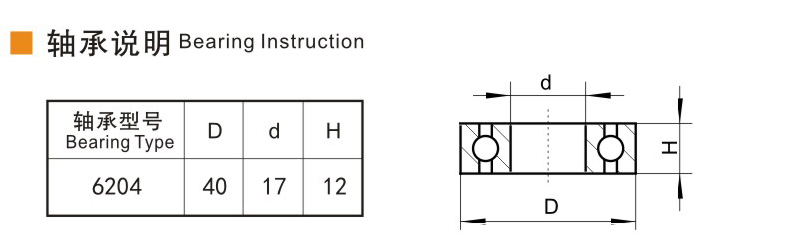

- Bearing：Double Ball Bearing
- Tread Color： Brown
- Core Material：Aluminum
- Applicable Temperature：-30℃～80℃
- Tread Hardness：85A
