EDL Light 3'' 80kg Plate Side Wheel Brake PU Caster 36123C-363-76/C
  • Product Category:36 Series(60-80kg)
  • Item NO.:36123C-363-76/C
  • Wheel Diameter:3"(75mm)

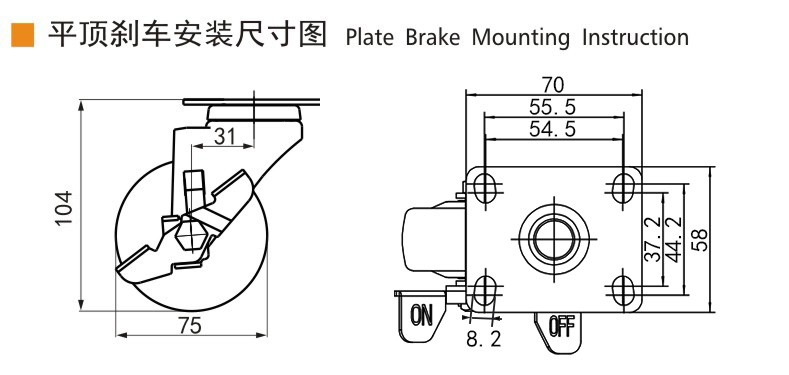

  • Mounting Type:Plate_Brake
  • Tread Material:PU
  • Dynamic Load:80kg
  • Mounting Height :104mm
  • Frame Material:Cold-Rolled Plate
  • Plate Thickness:2.5mm
  • Brack Thickness:2mm
  • Surface Treatment:Zinc Coating
  • Bracket Width:33mm
  • Wheel width:25mm
  • Bearing:Double Ball Bearing
  • Tread Color: Grey
  • Core Material:PP
  • Applicable Temperature:-20℃~80℃
  • Tread Hardness:95A
