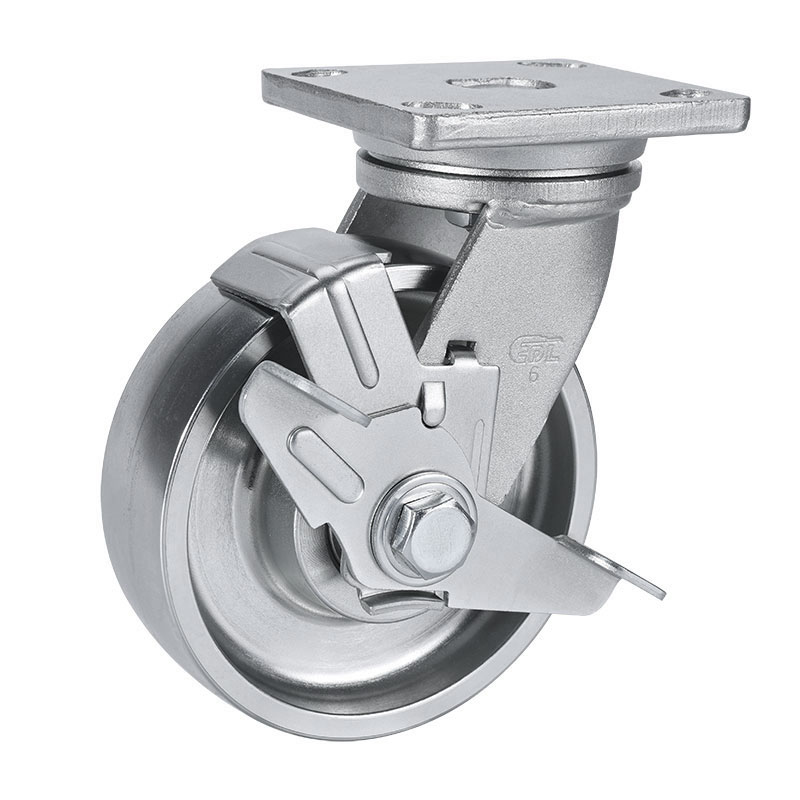

EDL Heavy 6" 950kg Plate Side Wheel Brake Cast Iron Caster 78126C-786-96/C
  • Product Category:78 Series(700-1000kg)
  • Item NO.:78126C-786-96/C
  • Wheel Diameter:6"(150mm)
  • Mounting Type:Plate_Brake
  • Tread Material:Cast_Iron
  • Dynamic Load:950kg
  • Mounting Height :196mm
  • Frame Material:Hot-Rolled Plate
  • Plate Thickness:9.5mm
  • Brack Thickness:6mm
  • Surface Treatment:Zinc Coating
  • Bracket Width:61mm
  • Wheel width:50mm
  • Bearing:Double Ball Bearing
  • Tread Color: Grey
  • Core Material:/
  • Applicable Temperature:-30℃~120℃
  • Tread Hardness:/
